Biochemical analyzer XL 200

Last update: 20.10.2015, 09:42:13

Fully Automated Random Access Clinical Chemistry Analyzer with a throughput of 200 tests/hr (photometric test) and 400 tests/hr with ISE (Na/K/Cl/Li). 30 Position Reagent Tray with on-board cooling, convenient software and extensive quality control menu.

DISPENSING OF SAMPLES AND REAGENTS

• Sample volume: 2-70 µl (in 0,2 µl step)
• Reagent volume: R1 50-300 µl (in 1 µl step), R2 10-200 µl (in 1 µl step)
• Dispensing probe equipped with liquid -level sensor and crash detector
• Auto-dilution of samples and calibrators

ECONOMY

• Minimum reaction volume: 180 µl
• Reusable reaction cuvettes

MIXING SYSTEM

• Independent stirrers
• 3 user selectable mixing speeds

QUALITY CONTROL

• 4 levels of control material can be used
• Levey-Jennings graphs
• Twin Plot diagrams for monitoring of systematic and random error

REACTION UNIT

• 45 reusable hard glass cuvettes
• Possibility of replacement of individual cuvette
• Wash station – cuvette rinsing and drying  in 8 steps
• Automatic cuvette blank measurement before analysis
• Reaction temperature 37°C ± 0,2°C

SAMPLE TRAY

• 39 positions for samples, blanks, standards, calibrators, controls and ISE solutions
• Primary tubes 5, 7 and 10 ml, vacuum system tubes and cups
• STAT sample with priority in any position
• Possibility of programming up to 99 virtual trays

REAGENT TRAY

• 50 positions, 20 ml, 50 ml reagent containers, 5 ml tube with adaptor)
• Reagent compartment with Peltier/air cooler (8-12°C)
• Option to use one reagent for several tests simultaneously

SOFTWARE

• Convenient user interface
• Connection to LIS
• Statistical methods of processing results
• Data export in selected format

MEASUREMENT MONITORING

• Color indication of sample analysis
• Possibility of monitoring the reaction in real time
• Reagent volume monitoring
• Informative reports on ongoing analyzer status

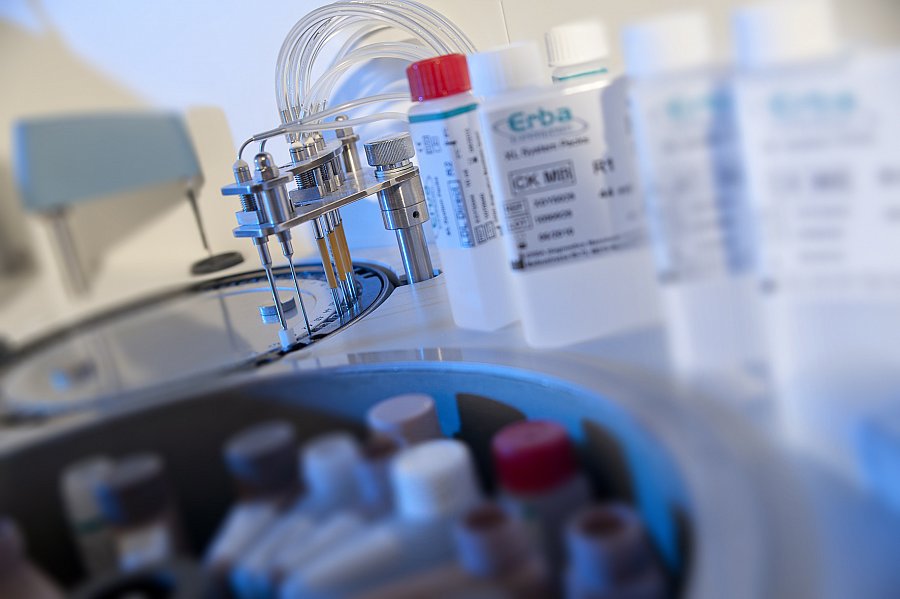

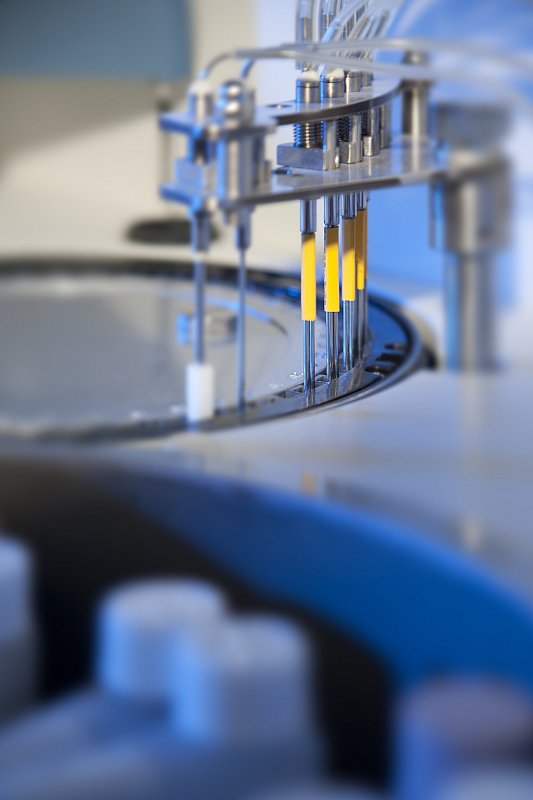

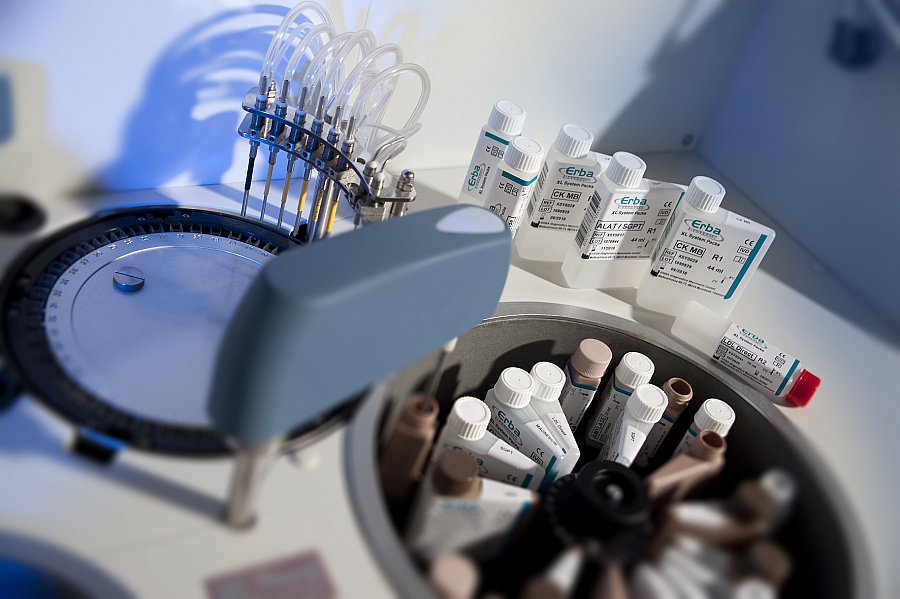

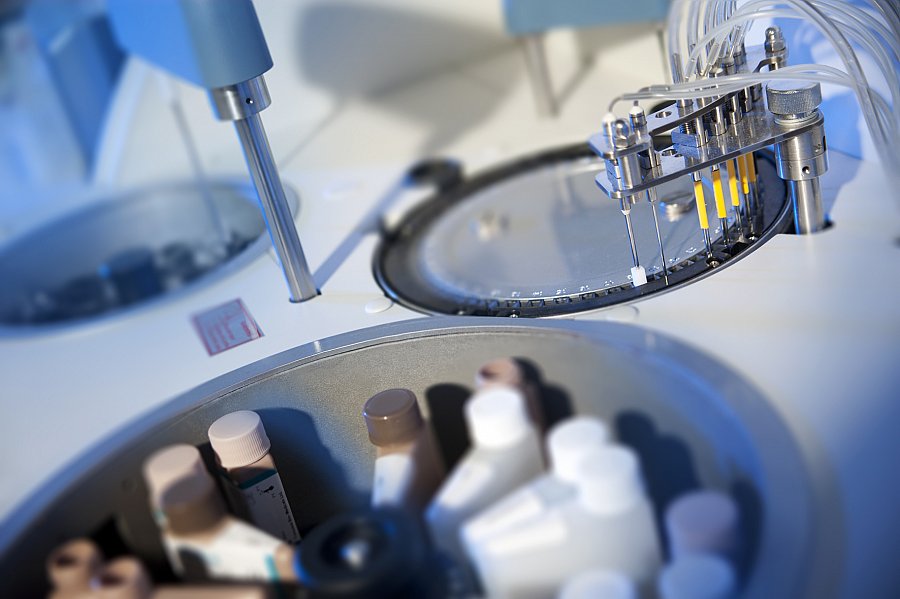

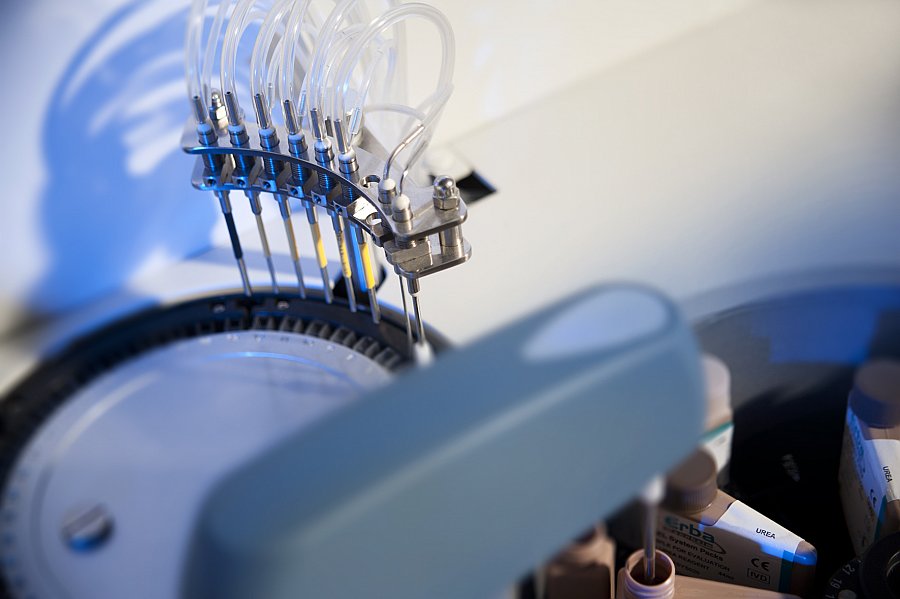

Photo gallery

•
•
•
•
•
•
•

Downloadable documents

Catalogues & Brochures:

CAT_XL200_EN.pdf (795,5 kB)
